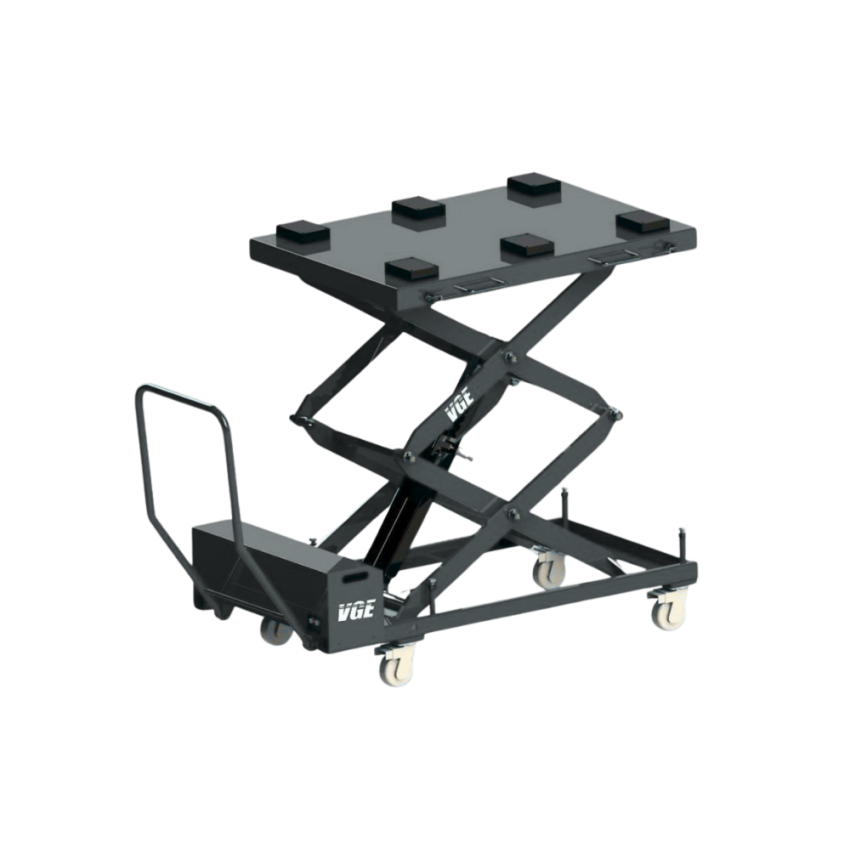

Low-profile EV Battery Lifting Table - 1 tonne
Handle EV battery packs with more control, stability, and confidence using the 1 Tonne Low-profile Electric Vehicle Battery Lifting Table. Designed for modern workshops carrying out battery removal and installation, it combines a 1,000kg lifting capacity with smooth electro-hydraulic lifting to reduce manual effort and help protect high-value components. With a wide, supportive 1,300mm x 850mm platform and a practical lift range from 450mm up to 1,800mm, it’s built to position battery packs at comfortable working heights and keep them securely supported throughout the job.
For precise alignment, the table top is tilt-adjustable to meet the battery underside cleanly, and fine positioning is made easier with horizontal adjustment up to 40mm without moving the entire table. Running on 220V single-phase power, it’s a smart investment for garages looking to future-proof EV servicing capability
Features & Benefits
1,000kg lifting capacity: Safely supports heavy EV battery packs and large vehicle components.
Electro-hydraulic lift operation: Smooth, controlled lifting that reduces manual handling and improves safety.
Lift range 450mm to 1,800mm: Offers technicians a full range of heights for removal and refitting.
Large platform size: Stable support surface for secure battery placement during lifting and positioning.
Tilt-adjustable tabletop: Improves alignment with the battery underside for easier positioning and reduced risk of damage.
Horizontal adjustment without moving the table: Fine-tune positioning quickly to meet mounting points accurately.
mains-powered power supply: Easy integration into most workshops.
High-quality components for precise lifting: Improves control on high-value EV battery work.
24-month warranty (T&Cs apply): Added peace of mind and investment protection.
Technical Specification
| Lifting capacity | 1,000 kg |
| Maximum lifting height | 1,800 mm |
| Minimum height | 450 mm |
| Platform length | 1,300 mm |
| Platform width | 900 mm |
| Power supply / motor power | 220 V / 50 Hz / Single phase / 1.5 kW |
Why Choose This Product?
The 1 Tonne Low-profile Electric Vehicle Battery Lifting Table is ideal for safer handling and more accurate positioning during EV battery removal and installation. Its 1,000kg capacity and smooth electro-hydraulic lift reduce strain and help protect high-value battery packs, while the large 1,300mm x 850mm platform keeps the battery fully supported. The tilt-adjustable top and 40mm horizontal fine adjustment help you align quickly and precisely without constantly repositioning the table, making the overall job faster, safer, and more controlled.
⭐⭐⭐⭐⭐
The larger platform gives really solid support for big battery packs. Even with the largest battery packs on it, it feels stable and confidence-inspiring.
⭐⭐⭐⭐⭐
Great height range for removing and refitting heavy parts. Much more comfortable than working at awkward levels. Ideal for workshops dealing with large, bulky parts.
⭐⭐⭐⭐⭐
The synchronisation setup helps it feel level and controlled. It has a areat working height and plenty of width for driving through, which makes positioning simpler, especially with wider vehicles.
| Option For Purchase | Delivery only £2995+VAT |
|---|
