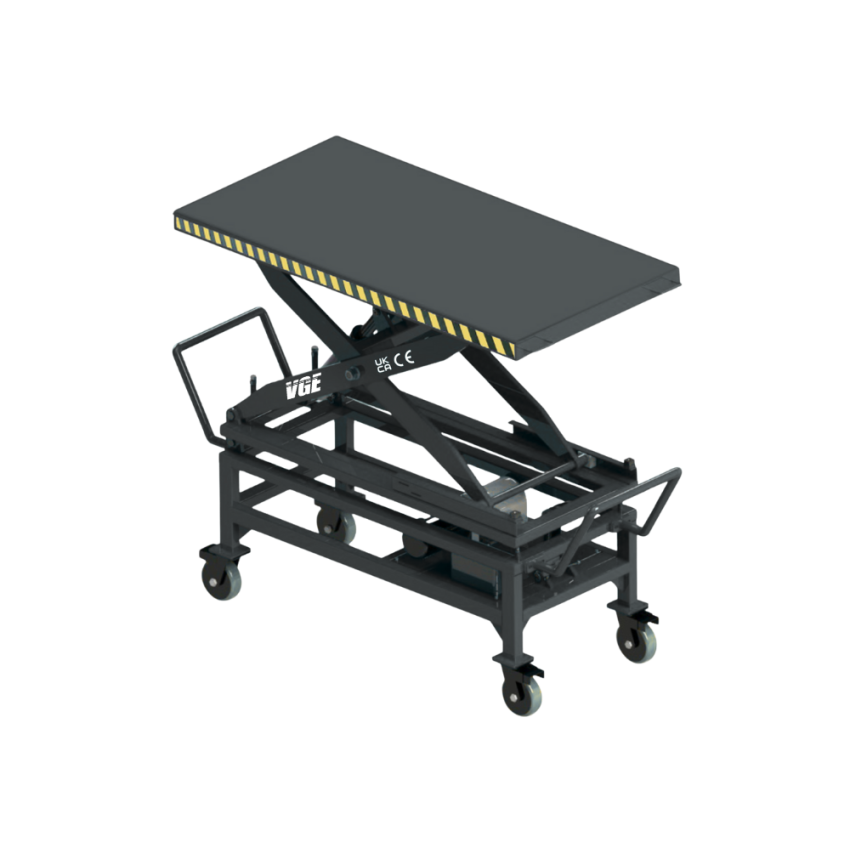

Mid-height EV Battery Lifting Table - 1 tonne
Handle heavy EV battery packs with more ease and control using the 1.0 Tonne Mid-height EV Battery Lifting Table. Built for modern workshops carrying out battery removal and installation, it combines a 1,000kg lifting capacity with electro-hydraulic drive and 24V low-voltage controls for smooth, precise operation.
Designed to make alignment easier, the platform tilts vertically and can be fine-positioned horizontally by 25mm in any direction, allowing you to dial in the final location without constantly shifting the entire table. The lift range from 860mm up to 1,700mm helps technicians work at practical heights, while insulating rubber coverage and a non-slip surface approach support safer handling around high-value components.
With four universal self-locking castors for easy manoeuvring, durable self-lubricating sliding blocks to prolong service life, fast lift and lower times, and assembled with premium-quality components, it’s a smart investment for workshops involved with EV servicing
Features & Benefits
1,000kg lifting capacity: Safely supports heavy EV battery packs and large vehicle components.
Electro-hydraulic drive with low-voltage controls: Smooth, controlled lifting for safer handling and more precise operation.
Lift range: 860mm to 1,700mm: Practical working heights for battery removal and installation.
Large platform: Stable support area to keep packs secure during lifting and positioning.
Platform tilts vertically: Helps match the battery with the vehicle underside and improve alignment accuracy.
Horizontal movement in any direction: Fine-tune positioning without moving the whole table, reducing risk and saving time.
Height limit switch: Helps ensure safer operation by protecting at the upper travel limits.
Self-locking castors: Easy to manoeuvre, then lock securely in place for controlled work.
Insulated, rubber-covered components: Added grip and protection when handling high-value parts.
Self-lubricating sliding blocks: Help prolong service life and reduce wear in daily use.
Fast lift/lower times: Improves workshop efficiency on time-sensitive jobs.
24-month warranty (T&Cs apply): Added peace of mind and investment protection.
Technical Specification
| Lifting capacity | 1,000 kg |
| Maximum lifting height | 1,800 mm |
| Minimum height | 450 mm |
| Platform length | 1,300 mm |
| Platform width | 900 mm |
| Power supply / motor power | 220 V / 50 Hz / Single phase / 1.5 kW |
Why Choose This Product?
The 1 Tonne Low-profile Electric Vehicle Battery Lifting Table is ideal for safer handling and more accurate positioning during EV battery removal and installation. Its 1,000kg capacity and smooth electro-hydraulic lift reduce strain and help protect high-value battery packs, while the large 1,300mm x 850mm platform keeps the battery fully supported. The tilt-adjustable top and 40mm horizontal fine adjustment help you align quickly and precisely without constantly repositioning the table, making the overall job faster, safer, and more controlled
⭐⭐⭐⭐⭐
The 1.2t capacity gives real confidence when handling heavier engine parts. It feels stable and controlled throughout the lift, as well as when pushed around the workshop.
⭐⭐⭐⭐⭐
The platform size is ideal. Having a long support area makes positioning big components feel much safer. Vertical tilt helps a lot when you’re matching angles, a lot less trial and error.
⭐⭐⭐⭐⭐
It’s made EV battery jobs a lot more manageable, no more stacking pallets on an old trolley for us. The mains power and simple controls made it easy for everyone to get on with.
| Option For Purchase | Delivery only £3295+VAT |
|---|
